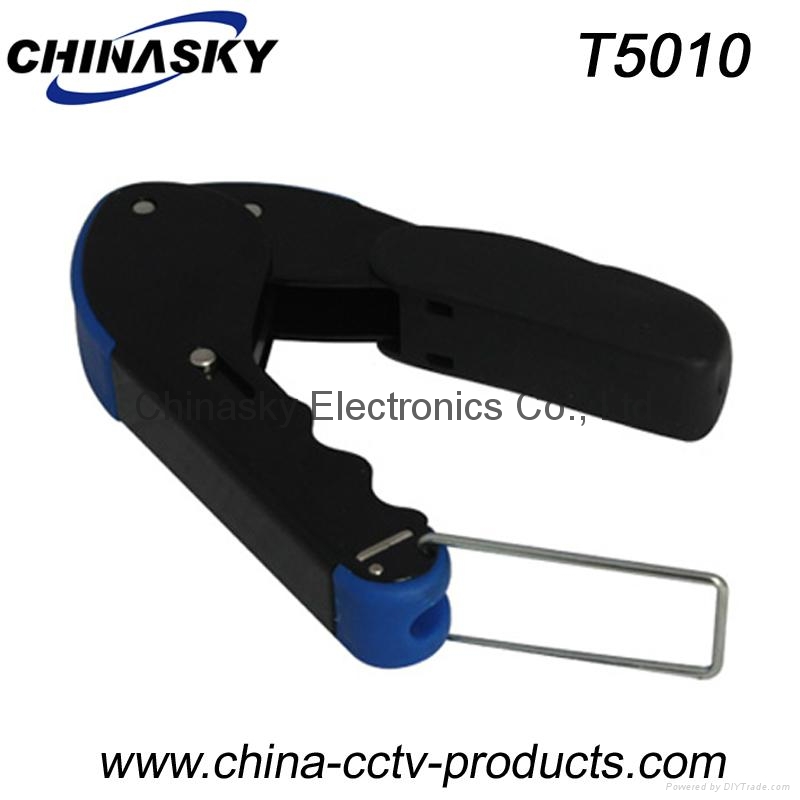

CCTV Compression Tool for Waterproof Connector(T5010)

  • CCTV Compression Tool for Waterproof Connector(T5010)
  • CCTV Compression Tool for Waterproof Connector(T5010)
  • CCTV Compression Tool for Waterproof Connector(T5010)
  • CCTV Compression Tool for Waterproof Connector(T5010)
Model No.︰T5010
Brand Name︰Chinasky
Country of Origin︰China
Minimum Order︰100 pc
Share on:

 Total 19 Related Items
Prev1213141516Next

Product Description

The compression tool T5010 is for compressing waterproof connectors. It connects radial connectors to coaxial cable. And it customizes the length of cable used to connect components.

Instructions:
Step 1:
1) Trim back the outer jacket approximately 1/2”
2) Trim the braided wire to approximately 1/4” length and fold it back over the outer jacket
3) Remove approximately 1/4” from the dielectric. This should leave approximately 1/4” of center conductor exposed and 1/4” of the dielectric exposed. Please review the diagram as shown.
Step 2:
Insert the stripped cable into the connector. Push until dielectric rests against the bottom of the relating ring inside the connector.
Step 3:
Place the connector with cable into the tool’s holder.
Step 4:
Squeeze the handles.
Step 5:
Remove the compressed connector from the tool.


For example, it can be used for our F connector model No.CT5083/RG59.

Size: 125*58*20mm(L*W*H)
Net Weight: 256g(280g including blister packing)
Compression Tool


T5010





Details:


Connects radial connectors to coaxial cable;


Customize the length of cable used to connect components


Weight: 280g
