CCTV Camera Power Supply Metal boxed 24V10A18channel(24VAC10A18P)

  •  CCTV Camera Power Supply Metal boxed 24V10A18channel(24VAC10A18P)
  •  CCTV Camera Power Supply Metal boxed 24V10A18channel(24VAC10A18P)
  •  CCTV Camera Power Supply Metal boxed 24V10A18channel(24VAC10A18P)
  •  CCTV Camera Power Supply Metal boxed 24V10A18channel(24VAC10A18P)
Model No.︰24VAC10A18P
Brand Name︰Chinasky
Country of Origin︰China
Minimum Order︰30 pc
Share on:

 Total 30 Related Items
Prev1617181920Next

Product Description

24VAC 10Amp 18 Channel metal boxed CCTV power supply / Camera Box Power24VAC10A18P



Description:

24VAC10A18P:1 in 18 Out 24VAC 10Amp Boxed CCTV Power Supply



The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.



Features:

       Power up to 18 CCTV CCTV surveillance cameras

       24 Volts AC

       10 Amp total output

       Max output current up to 1.1 Amp/Channel

       18 individually PTC auto-reset fuses protected outputs

       Integral surge protection

       Individual LED power indication

       Individual PTC reset-able fuses

       Internal On/off safety power switch with LED indicator

       Beige metal housing



Technical specifications:

Model

24VAC10A18P

Power

240W

Metal Case Dimension

28×20.8×8.7cm

Net Weight

4.52kgs

Input

Input Voltage

110/220VAC

Input Voltage Frequency

50Hz-60Hz

Output



Output Voltage

24VAC±5%

Output Current

10A, 18 channels for 18 sets load

Fuse

Type /Rating

PTC  1.1A/60V



Over Current Protection

When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Short-circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

Circumstances

Working Temperature

0℃-+40℃

Storage Temperature

-20℃-+85℃

RH

5%-95%

Heat Release

Natural heat dissipation

Connection

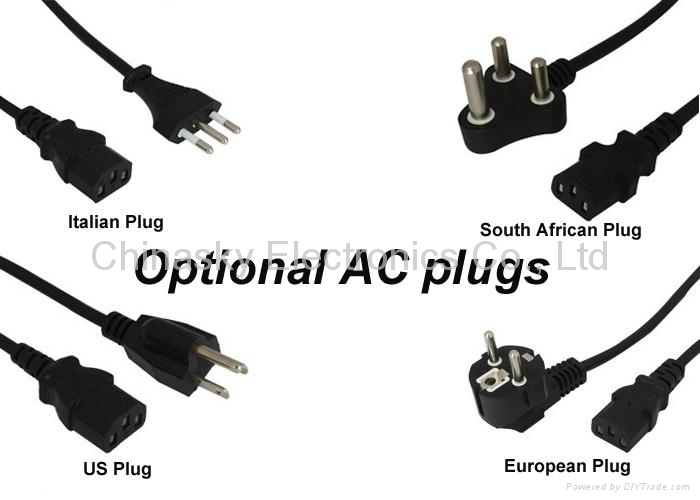

Input

Three-pin socket

Output

18 channels output

Competitive Advantages:

       This is one of the best 24VAC CCTV power supply boxes on the market for security cameras.

       We replace the cheap "glass fuse" with "PTC" Reset Fuses which will Auto Reset after you fix the short. You don't have to run around town try to find the replacement fuses. All you have to do is to fix the shorts.

       The red light shorts indicator helps you to know which camera is not working.

       Dependable and long lasting

       Warranty: 2 years
