Product Description
4.3" TFT-LCD CCTV AHD Tester for Camera (CT600AHD)
Description:
PAL/NTSC Auto Adapt for Analogue camera and AHD camera, PTZ control
5VDC output for mobile phone
12VDC output for CCTV Camera
MINI USB Universal Charging Port
Low Power Consumption
Auto Sleep In 3 Minutes Without Signal
Support audio test
Rechargeable Li-ion battery replaceable.
|
Model
|
CT600AHD
|
|
Video test
|
|
Video System
|
NTSC/PAL Automatically recognize
|
|
Video level
|
1VPP
|
|
Display screen
|
4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
|
|
Screen adjustment
|
Video display brightness, contrast, color saturation adjustable, LCD backlight brigh tness adjustable
|
|
Video input / output
|
1 channel BNC Video IN
|
|
HD AHD Test
|
|
SD signal Format
|
NTSC ,PAL
|
|
HD video signal
|
HD AHD
|
|
Resolution
|
D1,720P,960p
|
|
Signal Level
|
1Vpp
|
|
12V power output
|
|
Power output
|
Temporary power output 12V 1A DC
|
|
|
USBX1 5V1A output
|
|
Audio test
|
|
Audio test
|
Input audio signal, and played on the internal speaker
|
|
Power supply
|
|
External power supply
|
DC 5V(2A)
|
|
Battery-powered
|
Built-in 3.7V li-polymer battery, Capacity 2600mAh
|
|
Charge
|
Charge time 3-4 hours Battery power time 8 hours
|
|
Power saving features
|
Low power consumption, automatic power off, Real-time display of battery level
|
|
System settings
|
|
Language settings
|
Chinese, English user selectable
|
|
Auto power off
|
Disable / 5-60 minutes
|
|
Cable test
|
|
cable test
|
Test any two or more wire cable Display connect sequence and remote number
|
|
LED Light
|
1*35lm LED light
|
|
Working environment and Specifications
|
|
-20ºC---+70ºC
|
|
30%-90% Rh
|

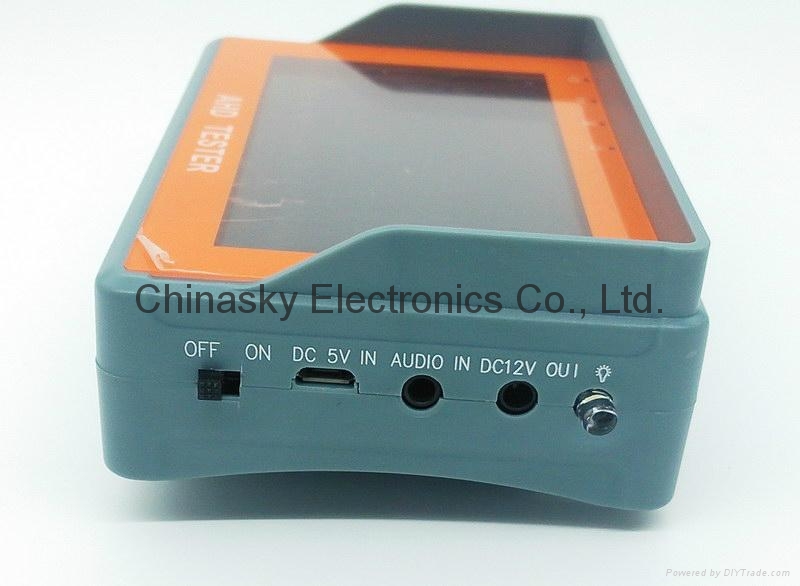

Product Image
