Model No.︰12VDC5A9PN
Brand Name︰Chinasky
Country of Origin︰China
Unit Price︰US $ 19.6 / pc
Minimum Order︰30 pc
Share on:

 Total 30 Related Items
Prev2526272829Next

Product Description

Product Overviews:

Place of Origin:Zhejiang,China

Brand Name:Chinasky

Model Number:12VDC5A9PN

Certification:CE, FCC, RoHS, IEC60950-1

Minimum Order Quantity:Negotiable

Packaging Details:Carton packing

Delivery Time:5-12 working days

Be designed for WUF-GV, PTZ and camera of CCTV system

Payment Terms:T/T, L/C, Paypal, Western Union, MoneyGram, Cash



Product Description:

12VDC 5A 9 Channel Premium CCTV Camera Power Supply (12VDC5A9PN)
Features:

1.Power up to 9 CCTV CCTV surveillance cameras

2.12 Volts DC

3.5 Amp total output

4.Max output current up to 1.1 Amp/Channel

5.9 individually PTC auto-reset fuses protected outputs

6.Switch mode power supply (regulated voltage)

7.Integral surge protection

8.Individual LED power indication

9.Individual PTC reset-able fuses

10.Internal On/off safety power switch with LED indicator

11.Beige metal housing

Technical specifications:

Model

12VDC5A9PN

Power

60W

Metal Case Dimension

24.5×20.8×8.3cm

Net Weight

2kgs

Input

Input Voltage

88-264VAC

Input Voltage Frequency

50Hz-60Hz

Average Input Current

100Vac≤1.0A

Efficiency

≥80%

Output



Output Voltage

12VDC±5%

Output Current

5A, 9 channels for 9 sets load

Output Ripple Noise(Vp-p)

80mVp-p@25℃/

Rated input voltage & Rated output load

Reply Time of Starting up

≤3S  Input 100Vac, Rated output load

Fuse

Type /Rating

PTC  1.1A/60V

Protection

Over Voltage Protection

When over voltage occurs, it will switch to self-protection status to protect the load.

Over Current Protection

When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.

Short-circuit Protection

When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.

Circumstances

Working Temperature

0℃-+50℃

Storage Temperature

-20℃-+80℃

RH

20%-90%

Heat Release

Natural heat dissipation

Connection

Input

Three-pin socket

Output

9 channels output

Dielectric Strength

Input to output

1500Vac/60S  leakage current≤1.5mA

Input to FG

1500Vac/60S  leakage current≤2.0mA

FG to output

500Vac/60S   leakage current≤1.5mA

Insulating strength

Input to output

≥20MΩ/500VDC@25℃

Leakage Current

≤0.12mA @AC110V(220V)/25℃

RG

≤0.011Ω@DC8V/25A/25℃

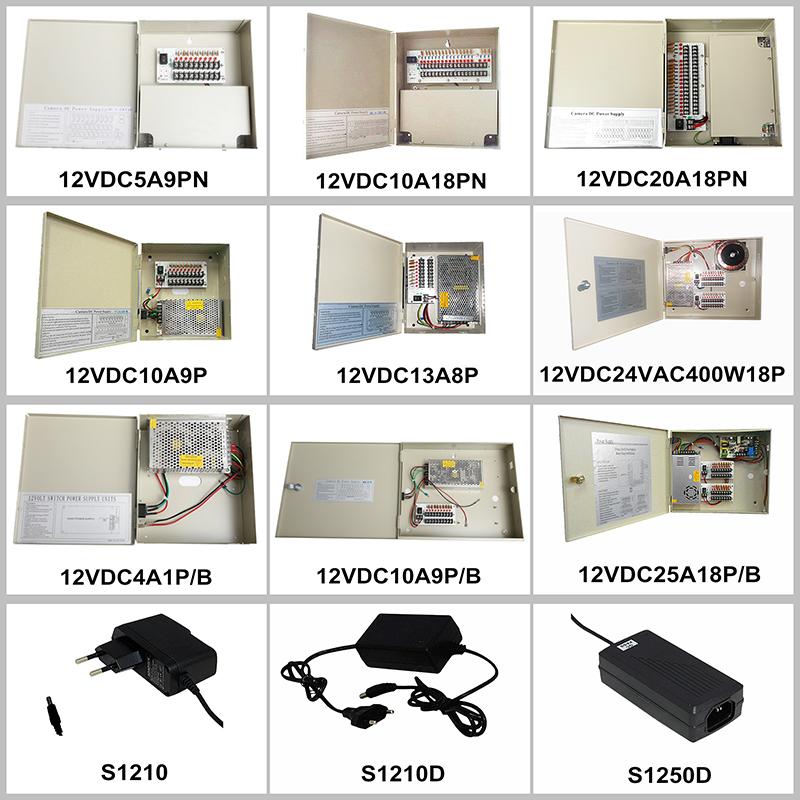

Product Show:

Company Introduction

Chinasky Electronics Co., Ltd. is the leading manufacturer and exporter of CCTV products in China. We are specialized in developing, manufacturing and exporting CCTV power supplies, CCTV cables and other CCTV accessories. We have more than 10 years' experience in the security and surveillance industry.

Our main products include the following:

1) CCTV Power Supplies: CCTV Power Supply boxes, CCTV Power Adapters, Open Frame CCTV Switching Power Supplies;

2) CCTV Connectors: BNC Connectors, RCA Connectors, Power Connectors;

3) Video Baluns;

4) CCTV Cables: Siamese Cables, Coaxial Cables, Pre-made Cables;

5) CCTV Tools: stripping tools, crimping tools, compression tools;

6) CCTV testers;

7) PoE Switches;

8) CCTV Microphones;

The mission of Chinasky Electronics is to provide quality products and competitive prices to our customers. With a strong research and development team, well-established production capacity, and very strict quality control system, we are able to ensure your security and surveillance needs. We have an energetic, enthusiastic, professional and powerful sales team to be in charge of all exporting inquiries and orders and provide quality advice to achieve customers' OEM and ODM requirements.

In order to guarantee our products to be exported and re-sold in other countries safely, our products are in accordance with global testing standards, such as CE (EMC & LVD), IEC60950-1, UL/cUL, SAA, GS, TUV, PSE,RoHS, etc. We work with accredited third party labs (SGS, INTERTEK, ANBOTEK, CPC) to ensure all products we supply are compliant and valid for import into the target markets. We have made a lot of certificates and test reports for our exported products from accredited third party labs.

We aim to create long-term, win-win partnerships with our customers. We are aware that trust and communication are essential for long-term partnerships. We value our customers' success as well as ours.

If you are interested in any of our products and services, please don't hesitate to contact us. We are ready to reply you within 24 hours after receipt of your request.

Exhibition Show:

Packing&Shipment:

Packing list:Inner Paper Box Size: 25*21*9cm ; Outer Carton Size: 52*38*23.5cm ; Packing rate: 8PCS/CTN

Packing Weight:Export Carton,less than 20KGS each carton.

Packing:We will use professional equipment to pack goods.

Shipment:We ship by air or sea,EMS,DHL,Fedex,UPS,according to your choice when placing orders .

Why choose us:

1.Long History and Stable Production
We have more than 10 years' experience in the CCTV security and surveillance industry.
We have exported our products to more than 50 countries and regions, such as the USA, UK, Italy, Spain, Netherland, Portugal, France, New Zealand, Singapore, South Africa, Mexico, Colombia, etc.
Our production capacity is stable. We can arrange the shipment to you in time .

2. Strict Quality Control System
We have strict quality control system. All of our technicians are professional. They are strict on quality control.
Before order, we can send the samples for your testing . We ensure the quality is the same as bulk order.

3.Prompt Response
We will reply to you within 8 hours in working days.

4. Prompt Delivery
We can usually deliver goods between 7 to 15 days.
We have good cooperation with many professional forwarders here. We can send the goods to you on time.

5. Long Warranty Time
Our warranty time is two years.
If there is something wrong with the products we sell, we will support you with technical analysis and solutions. We will also supply replacements if necessary.
We have sold a lot in the USA market for over 10 years and with very few bad feedbacks. The failure rate is less than 1%.

6.FREE Lifetime Technical Support
Our technical support is provided freely throughout pre-sale, on-sale and after-sale.

7.Knowledgeable Sales & Support Staff
We have a strict staff selection criteria and training system.

8.Outstanding Customer Testimonials

9.We NEVER Sell or Share Your Information
Without your permission, we will never sell or share your information to any person or company.

10. We Have Long-Term Development Planning
Our purpose is not simply to make money. We intend to make the brand reputation with 3 to 5 years. So we pay great attention to quality and service.


FAQ:

1.HOW LONG CAN I GET THE FEEDBACKS AFTER WE SEND THE INQUIRY?
We will reply to you within 8 hours in working days.

2.ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?
We are a factory. We also have our own international trade department .

3.WHAT PRODUCTS CAN YOU OFFER?
We mainly produce CCTV power supplies, power adapters, CCTV connectors, video baluns, and other CCTV accessories.

4.CAN YOU DO OEM PRODUCTS?
Yes, we can.

5.HOW MANY EMPLOYEES OF YOUR COMANY? WHAT ABOUT TECHNICIANS?
We now have 260 employees, including 10 engineers and 10 technicians.

6.HOW TO GUARANTEE THE QUALITY OF YOUR GOODS?
Firstly, we will do the inspection after every process. For the finished products, we will do 100% inspection according to the customers' requirements and the international standard.

7.WHAT'S YOUR TRADE AND PAYMENT TERMS?
When we quote for you, we will confirm with you the way of transactions ,EXW, FOB, CIF, CNF, etc.
For mass production goods, you need to pay 30% deposit before production and 70% balance before shipment. The most common way is T/T. Of course, Western Union, Paypal, MoneyGram, L/C are also acceptable according to different situations.

8.HOW TO DELIVER THE GOODS TO US?
Usually we will ship the goods to you by sea, because we are in Hangzhou. We are between Shanghai Port and Ningbo Port. It is very convenient and efficient to ship goods to any other countries. Of course, if your goods are very urgent, the Ningbo Airport and Shanghai Airport are also very nearby. So we can send the goods to you by air or by courier such as TNT, FedEx, DHL, UPS,etc.

9.WHERE ARE YOUR PRODUCTS MAINLY EXPORTED TO?
Our products are mainly exported to the United States , the United Kingdom , Italy, Spain, Netherland, Portugal, France, New Zealand, Singapore, South Africa, Mexico, Colombia, and many other countries.
