Compression tool network portable for waterproof F/BNC/RAC connector (T5518)

CCTV Tool
  • CCTV Tool
  • T5518(1)
  • T5518(2)
  • T5224
  • T5009
  • T5019
  • T5003
  • T5005
  • T5006
  • T5008
  • T5010
  • T5023
  • T5024
  • T5068
  • T5081
  • Certificate

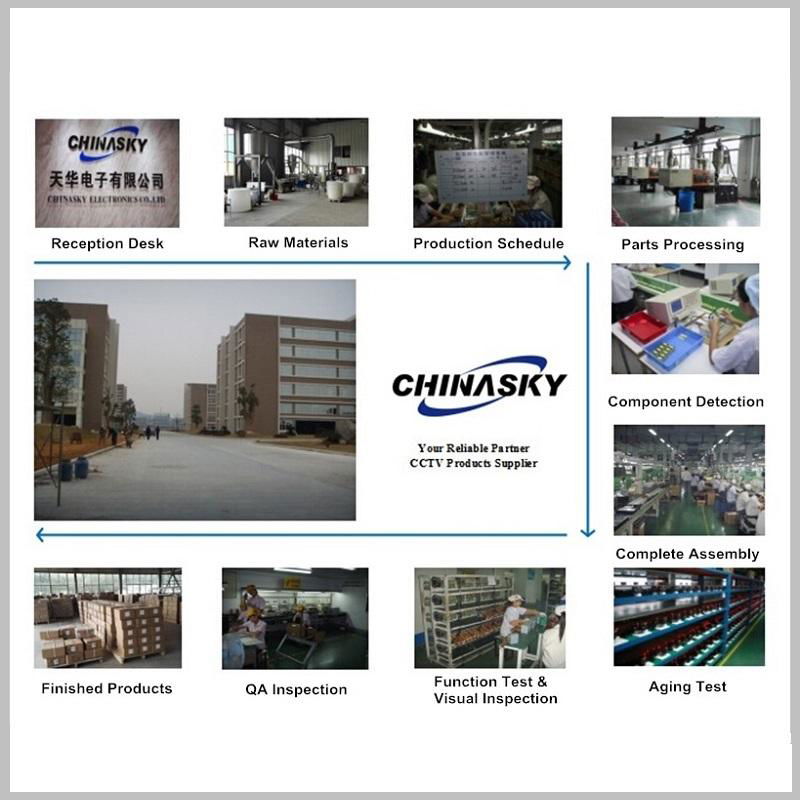

  • Product Line
  • Exhibition

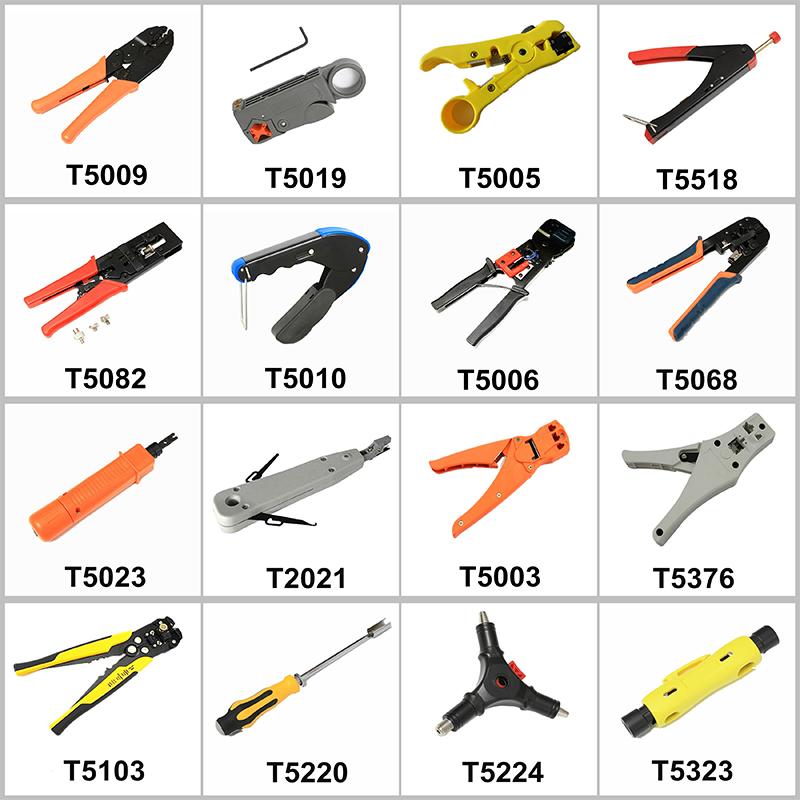

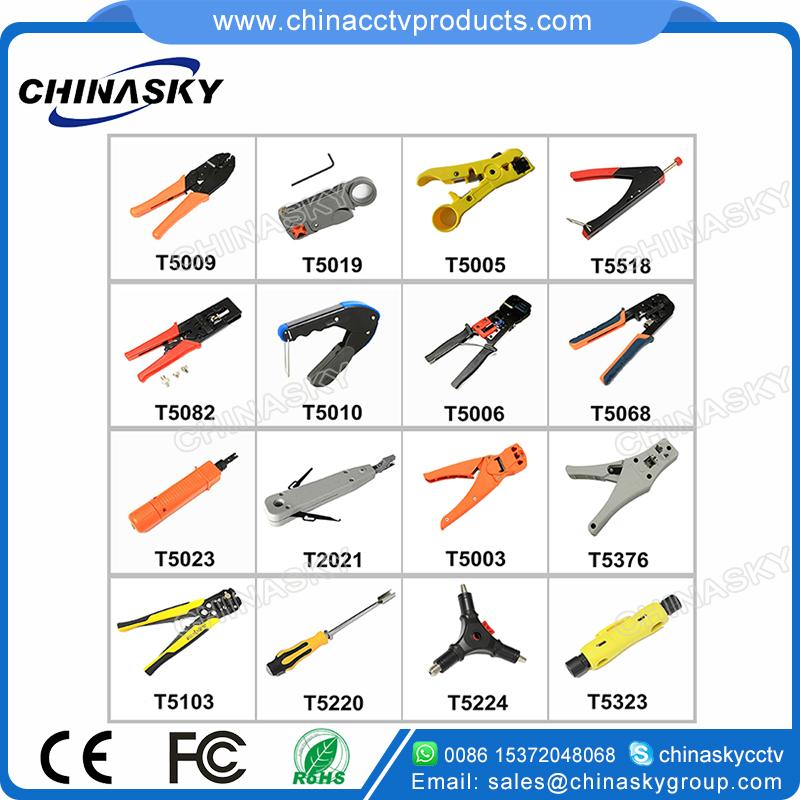

  • CCTV Tool Show
  • Company
Model No.︰T5518
Brand Name︰Chinasky
Country of Origin︰China
Unit Price︰US $ 5.5 / pc
Minimum Order︰100 pc
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

Product Overviews:



Place of Origin:Zhejiang,China

Brand Name:Chinasky

Model Number:T5518

Delivery Time:5-12 working days

Minimum Order Quantity:Negotiable

Packaging Details:Blister Packing

Payment Terms:T/T, L/C, Paypal, Western Union, MoneyGram, Cash

Product Description:

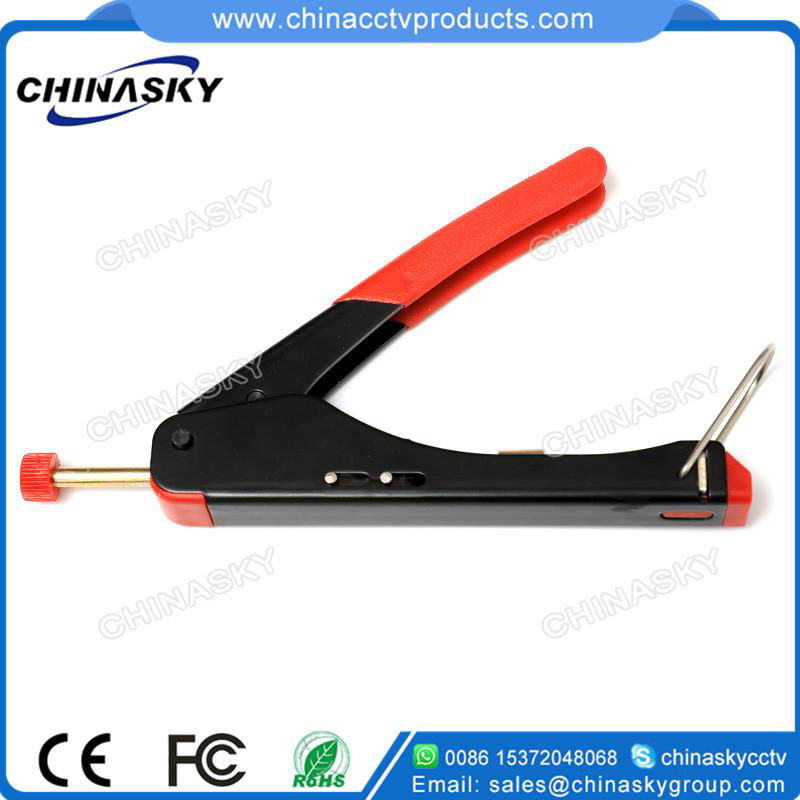

Waterproof Compression Tool for CCTV BNC/F/RCA Connector (T5518)

Features:

1.For compressing waterproof connectors(BNC/F/RCA).

2.It connects radial connectors to coaxial cable.

3.It customizes the length of cable used to connect components.

Technical specifications:

Tool Compressed Distance

Before(±0.2)

After(±0.2)

Min.

Max.

Min.

Max.

27.5

54.8

19.5

46.8

Size

125*58*20mm(L*W*H)

Net Weight

256g(280g including blister packing)

Instructions:

Step 1:

1) Trim back the outer jacket approximately 1/2

2) Trim the braided wire to approximately 1/4 length and fold it back over the outer jacket

3) Remove approximately 1/4 from the dielectric. This should leave approximately 1/4 of center conductor exposed and 1/4 of the dielectric exposed. Please review the diagram as shown.

Step 2:

Insert the stripped cable into the connector. Push until dielectric rests against the bottom of the relating ring inside the connector.

Step 3:

Place the connector with cable into the tools holder.

Step 4:

Squeeze the handles.

Step 5:

Remove the compressed connector from the tool.

Product Show:
